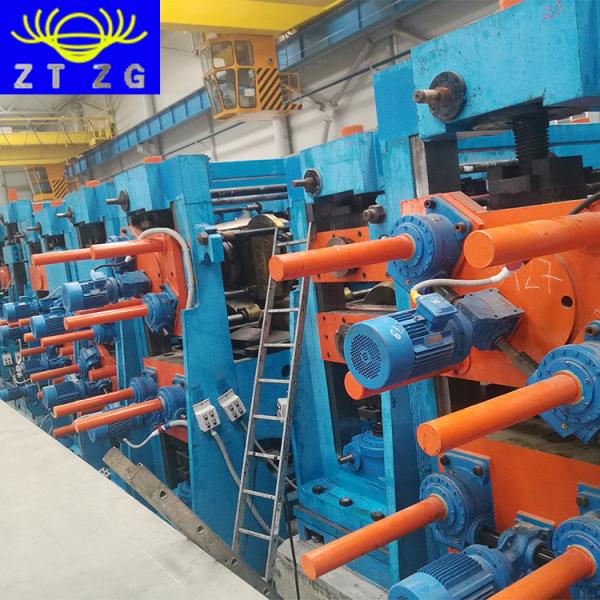

Erw X70 Api Tube Mill Welded Pipe Production

Name: Erw X70 Api Tube Mill Welded Pipe Production
Brand: ZTZG
Price: 500000 USD

Brand Name : ZTZG

Model Number : ERW720

Certification : ISO9001,CE

Place of Origin : China

MOQ : 1

Price : USD500000 per set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 120 sets per year

Delivery Time : 180 days

Packaging Details : nude packing and electrical parts are packed in wooden cases

Dimension(L*W*H) : Machine Configuration

Type : Pipe Production Line

Pipe shape : Round

Machinery Test Repor : Provided

Quality : High Grade

Marketing Type : 2021 new

Thickness : 6-22mm

Outer diameter : 355-720

Material : X70

Contact Now

ERW Pipe Mill API Welded Pipe Production Line Machine Tube Machine

General Description:

API pipe mill is specially for manufacturing straight welded pipe for petroleum and gas pipr lines.Taking hot-rolled steel as raw material,it produce reqquired pipes through cold roll forming and suitable welding methods like HF welding,submerged arc welding and so on. The whole production line adopts ZTF forming technology which is developed bu ourselves combined with advanced Japanese FFX technology,and it is no need to change rollers in breakdown section.

ERW Pipe Mill API Welded Pipe Production Line Machine Tube Machine:

Product&yield	Round Pipe	355mm-720mm Thickness:6.0mm-22.0mm
	Square & rectangle tube	300mm×300mm -600mm×600mm Thickness:6.0mm-22.0mm
	Length	6m-12m Length Tolerance: ±3mm
	Production Speed	20 m/min
	Production capacity	180,000ton/year
Consumption	Mill installed capacity	1400 kw
	Line Area	400m(length) ×40m (width)
	worker	6-8 workers
Raw Material	Carbon steel coil & steel plate Q235B(ASTM GR·D,σs 230) & High-strength steel

Technical Flow:

Coil Preparation →Uncoiling → Pinch Leveling Machine →Shear Butt Welder →Accumulator → Forming →H.F. Induction Welding →Burr Removing→ Cooling → Sizing → Cutting → Output Roll Table →Intermediate Annealing Machine →Off Line Straightener→Ultrasonic Flaw Detection→Hydro Testing Machine →End Chamfering Machine →Weighing Length Measurement Spray Mark →Checking & Collecting → Accessing Warehouse

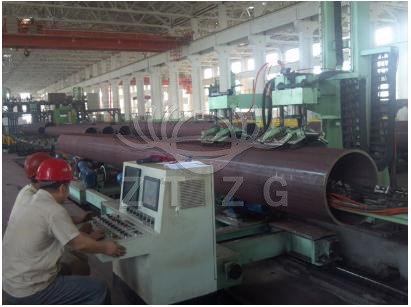

Erw X70 Api Tube Mill Welded Pipe Production

Q: Are you a manufacturer?
 A: Yes, we are a manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
 Q: What kind of payment term do you do?
 A: We do T/T.
 Q: What info do you need before giving me the price and proposal?
 A: Since we design individual machines based on our customer's requirements, we need your desired products' basic dimensions, including all the pipe diameter(or tube length), thickness range, usage, raw material steel grade, coil weight, and degree of automation.
 Q: What should I do if I just start a new business?
 A: Contact us immediately, we provide a free consultant for pre-sales service. Also, we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
 Q: How do you do QA?
 A: We have a special team to do strict QA, this is one of our strengths:
 (1)Every gearbox will be tested for 8 hours with oil inside to guarantee there is no leak.
 (2)Every shaft will be inspected for centering jumpiness.
 (3)Every roller will be checked to make sure it's in the range of tolerance critical parts will be inspected for all dimensions.
 Q: Why I should choose you? what are the differences between you and other Chinese suppliers?
 A: We are concentrating on pipe-making machines for more than 20 years. We have constructed many steady trading partners in Asia, Africa, the middle east, Europe, and South America throughout the years. Our innovative designed production line and every single unit of the production line are economical and practical.
